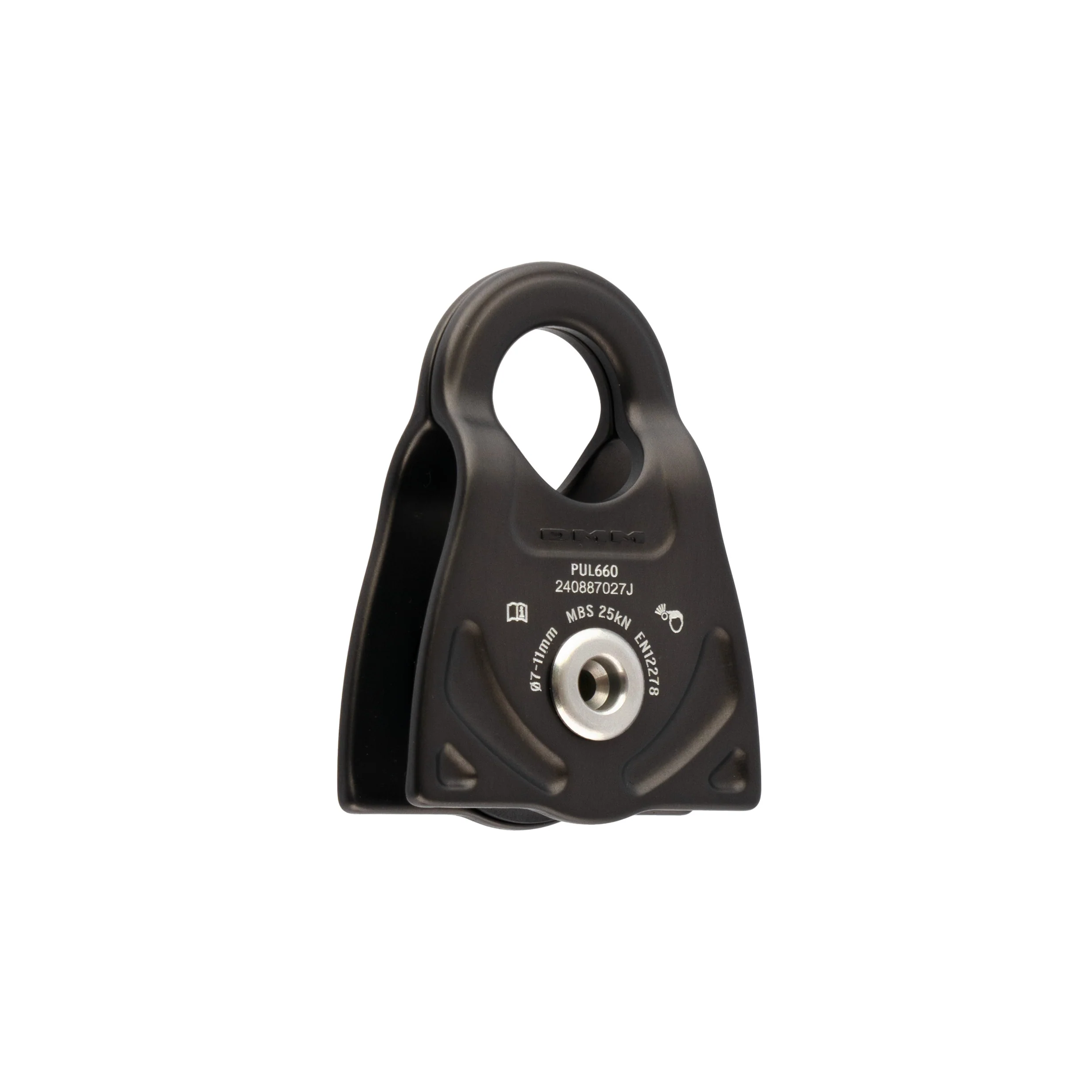

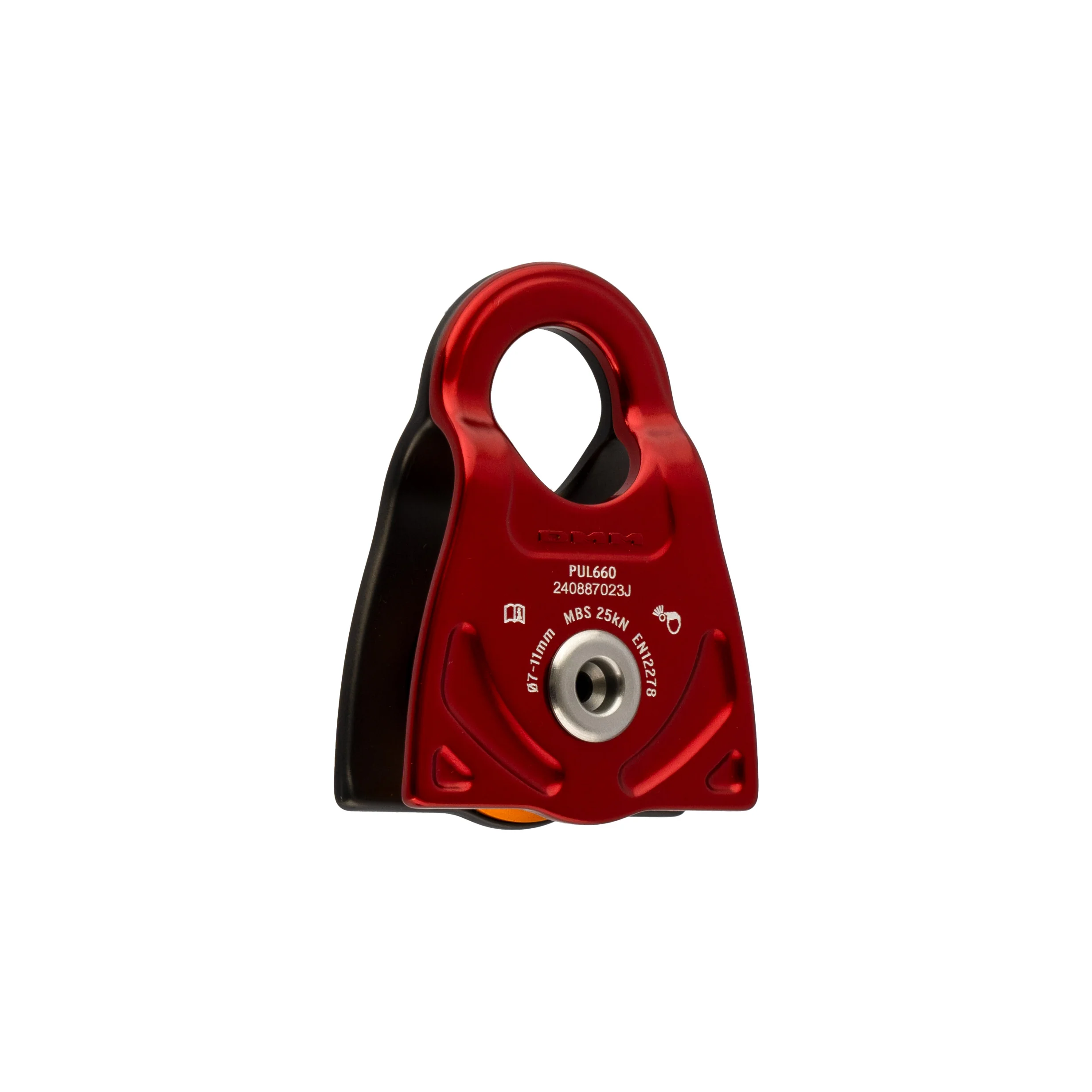

Engineered to be lightweight yet exceptionally strong, this compact pulley delivers outstanding efficiency thanks to its sealed ball bearings. The hot-forged side plates feature extended flares that shield the rope and sheave when used close to surfaces, while reinforced tabs are designed to engage a prusik knot perfectly for smooth progress capture. With its thoughtful design, this pulley is an excellent choice for hauling systems and managing smaller loads.

Features

• Ultra-compact pulley

• Sealed ball bearings for high efficiency and low maintenance

• Attachment eye is large enough to allow for carabiner to rotate for easier system set up

• Hot forged smooth fairleads and edges are rope and textile friendly

• Prusik minding tabs allow pulley to be easily built into progress capture hauling systems

• Forged Prusik minding tabs have an increased width compared to simple plate pulleys which give better engagement of the Prusik

• Wider side profile protects the rope when running close to surfaces

• Connects directly in with textile components for extra versatility

• Compatible with ropes up to 11mm diameter

• Lightweight and strong with a 25kN MBS and 5kN WLL

• Swinging side plates for easy installation

Specification

• MBS: 25kN
• WLL: 5kN
• Dimensions: 72 x 54 x 24mm
• Weight: 73g
• Rope Diameter: 11mm Max
• Certification: EN12278:2007
